MC100LVELT23DR2G
Manufacturer:
On Semiconductor
Mfr.Part #:
MC100LVELT23DR2G
Datasheet:
Description:

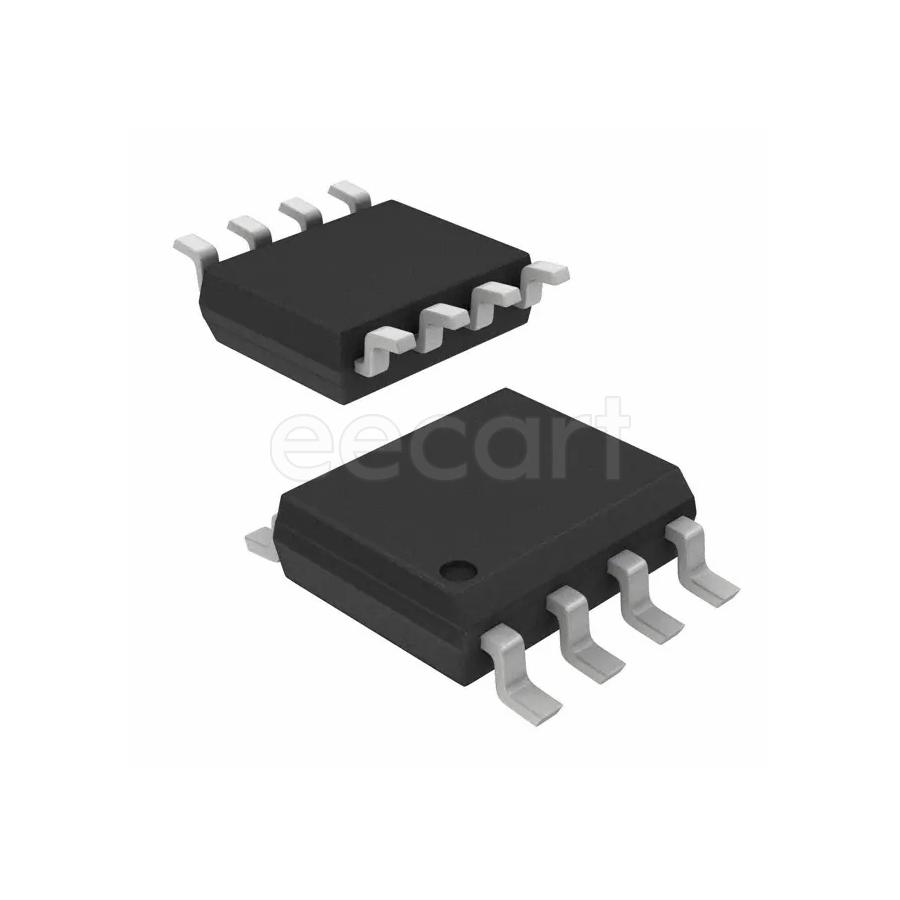

Voltage Level Shifters SOIC-8 SMD/SMT Non-Inverted LVDS, LVPECL LVTTL
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | LVDS/LVPECL to LVTTL |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3 V |
| Output Type | Non-Inverted |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Supply Voltage | 3.8 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 2 |
| Number of Bits | 2 |
| Turn-On Delay Time | 2.5 ns |
| Propagation Delay | 2.5 ns |
| High Level Output Current | -3 mA |
| Low Level Output Current | 24 mA |
| Logic Function | Translator |
| Channel Type | Unidirectional |
| Number of Outputs | 2 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 months ago) |
| Channels per Circuit | 2 |
| Input Signal | LVDS, LVPECL |
| Output Signal | LVTTL |
Stock: 432
Distributors
pcbx
pcbxUnit Price$2.15870
Ext.Price$2.15870
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.15870 | $2.15870 |
| 10 | $1.62693 | $16.26930 |
| 25 | $1.49527 | $37.38175 |
| 50 | $1.41849 | $70.92450 |
| 100 | $1.34566 | $134.56600 |
| 300 | $1.31146 | $393.43800 |
| 500 | $1.27813 | $639.06500 |
| 1000 | $1.24563 | $1245.63000 |
| 3000 | $1.18113 | $3543.39000 |
| 5000 | $1.11996 | $5599.80000 |
